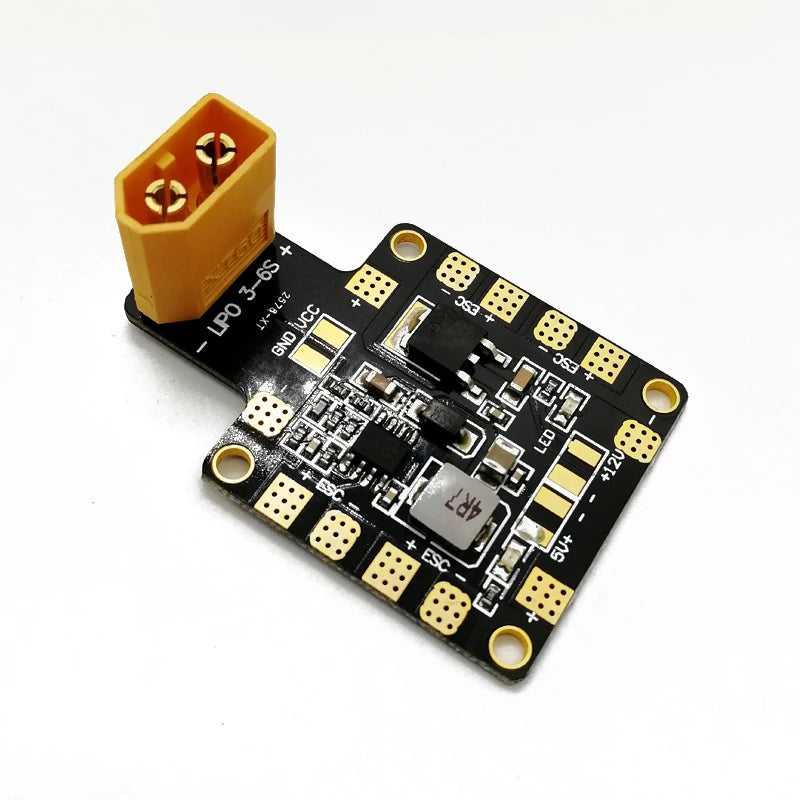

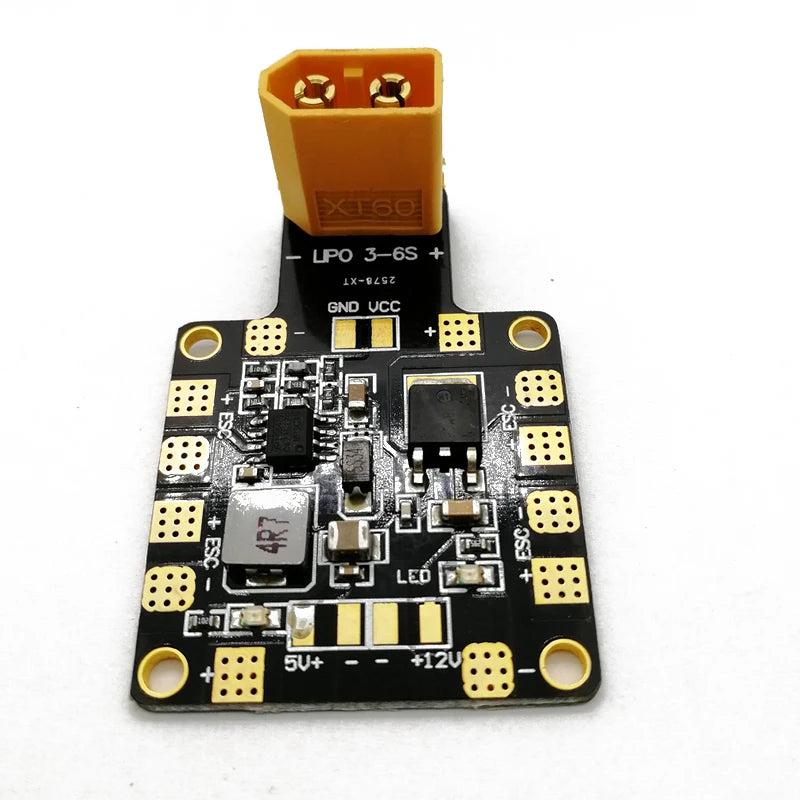

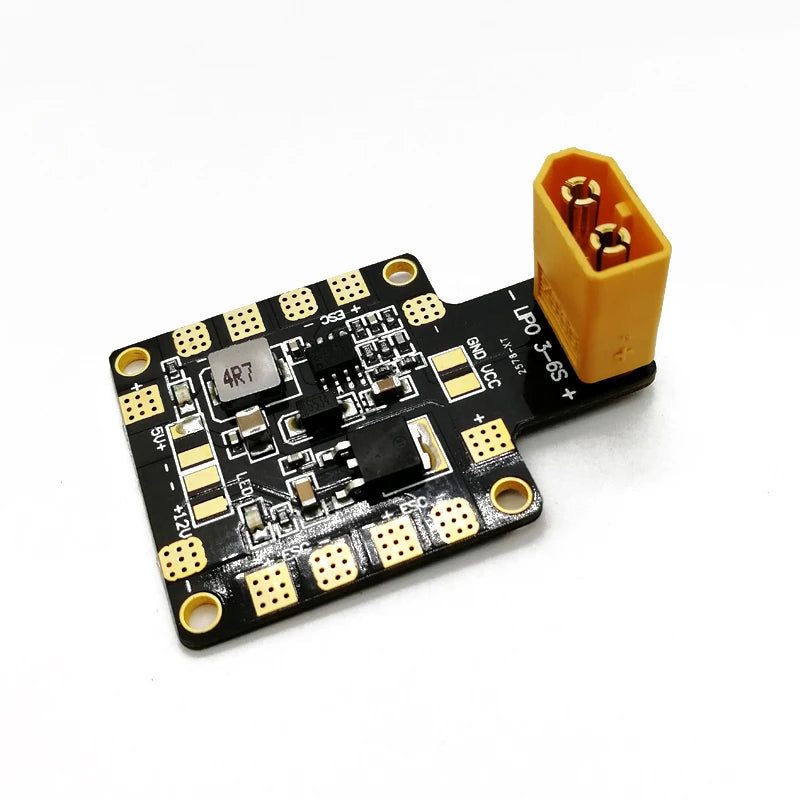

Power Distribution Board PDB-XT60 with BEC

Dimensions: 36 x 50 x 4 mm (without XT60)
Mounting: 30.5 x 30.5mm, 3mm
Weight: 7.5g (w/o XT60), 11g (w/ XT60)

Support 2S-6S input, 2oz copper foil to ensure high current flow

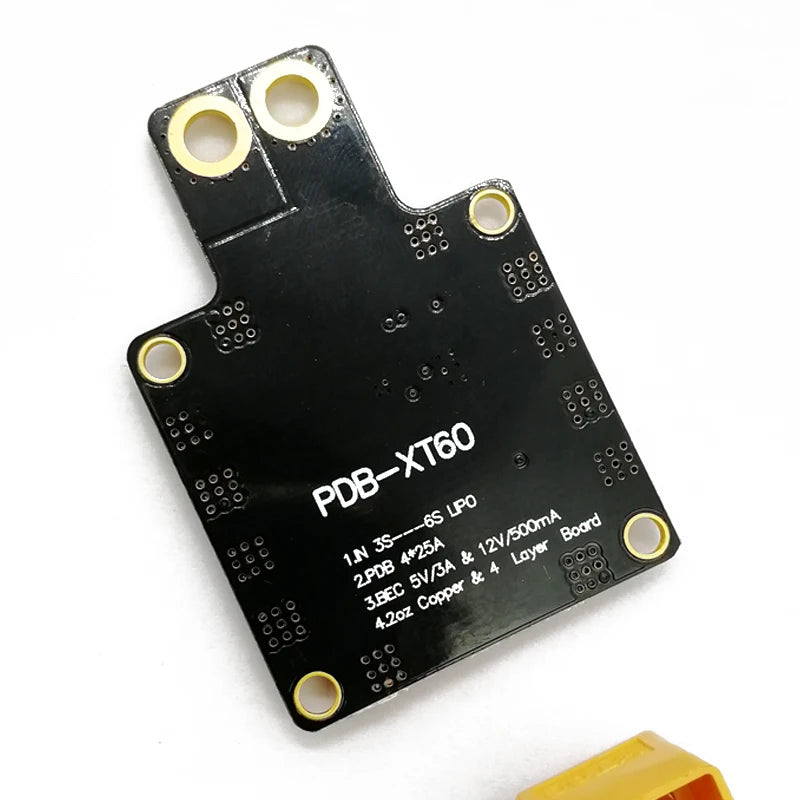

4-layer PCB, high power current and BEC layered, to avoid the interference of BEC ground wire by power current

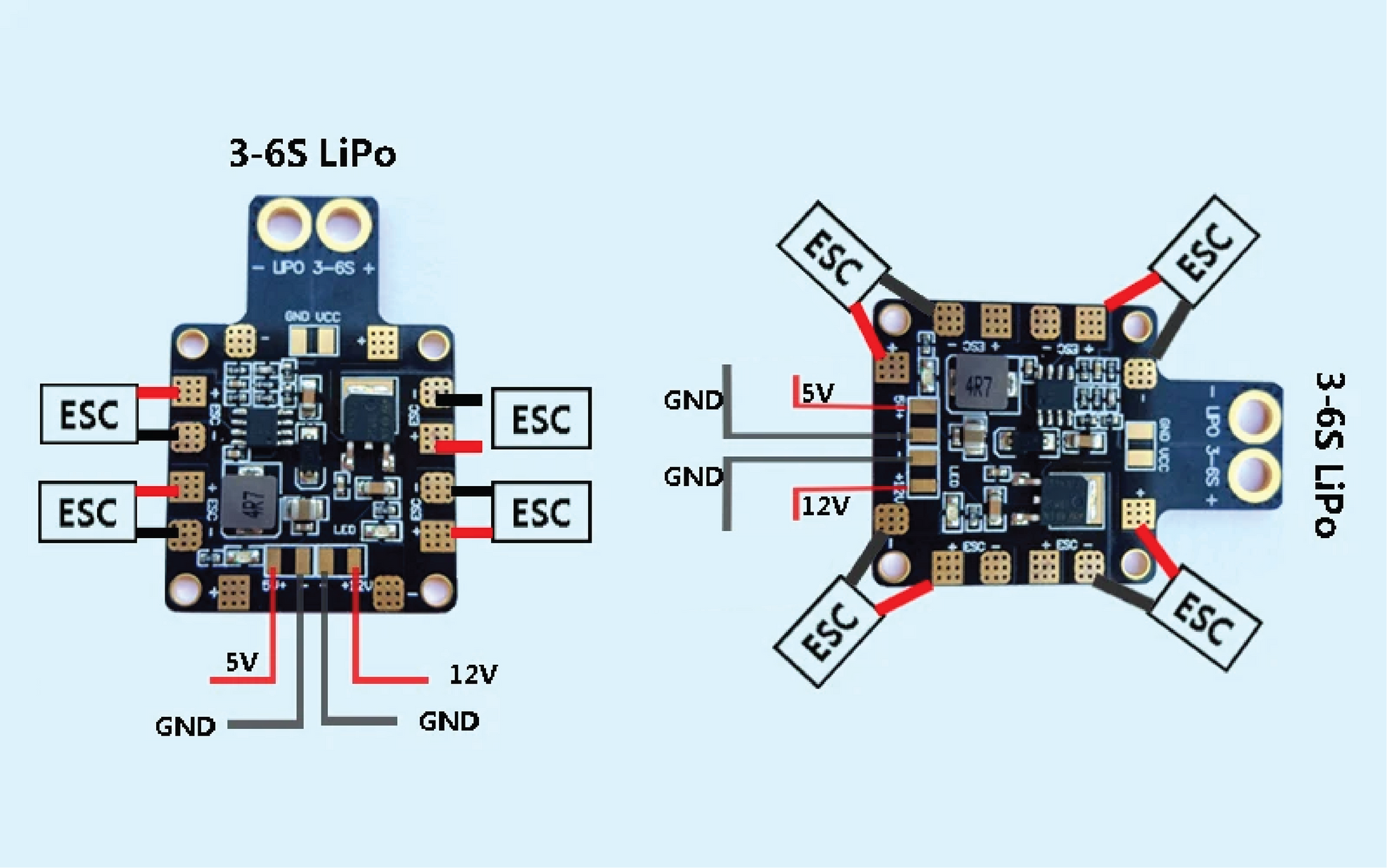

6 pairs of ESC power supply pads, suitable for X-shaped or H-shaped rack ESC arrangement
Dual BEC: 5V/3A synchronous rectifier switch BEC, 12V/0.5A linear BEC
Compatible with racks with upper plate width less than 48mm Distributor board withstand current 4*25A, short-term 4*30A (10s)
BEC 5V ripple: 40mV (Vin=16V, Vout=5V@2A load)
BEC 12V linear voltage regulator, very low ripple, will not interfere with the image signal
52*36*3mm, including XT60 total weight 11g
Installation hole pitch 30.5mm, bore diameter 3mm

The package contains a genuine Amass XT60 plug, which needs to be soldered on the distribution board by the user.

Pay attention to the input polarity, do not reverse or short the input!

Do not touch the carbon fiber board behind the distributor board, it may cause a short circuit.

When using 4S, the 12V regulated output can last 500mA
the precision of regulated voltage is 2.5%
The 12V voltage regulator chip also supports 3S battery input, but the output voltage = 3S real-time voltage -1V; BEC 12V can provide a 12V camera and a 600mW image transmission
