HOBBYWING

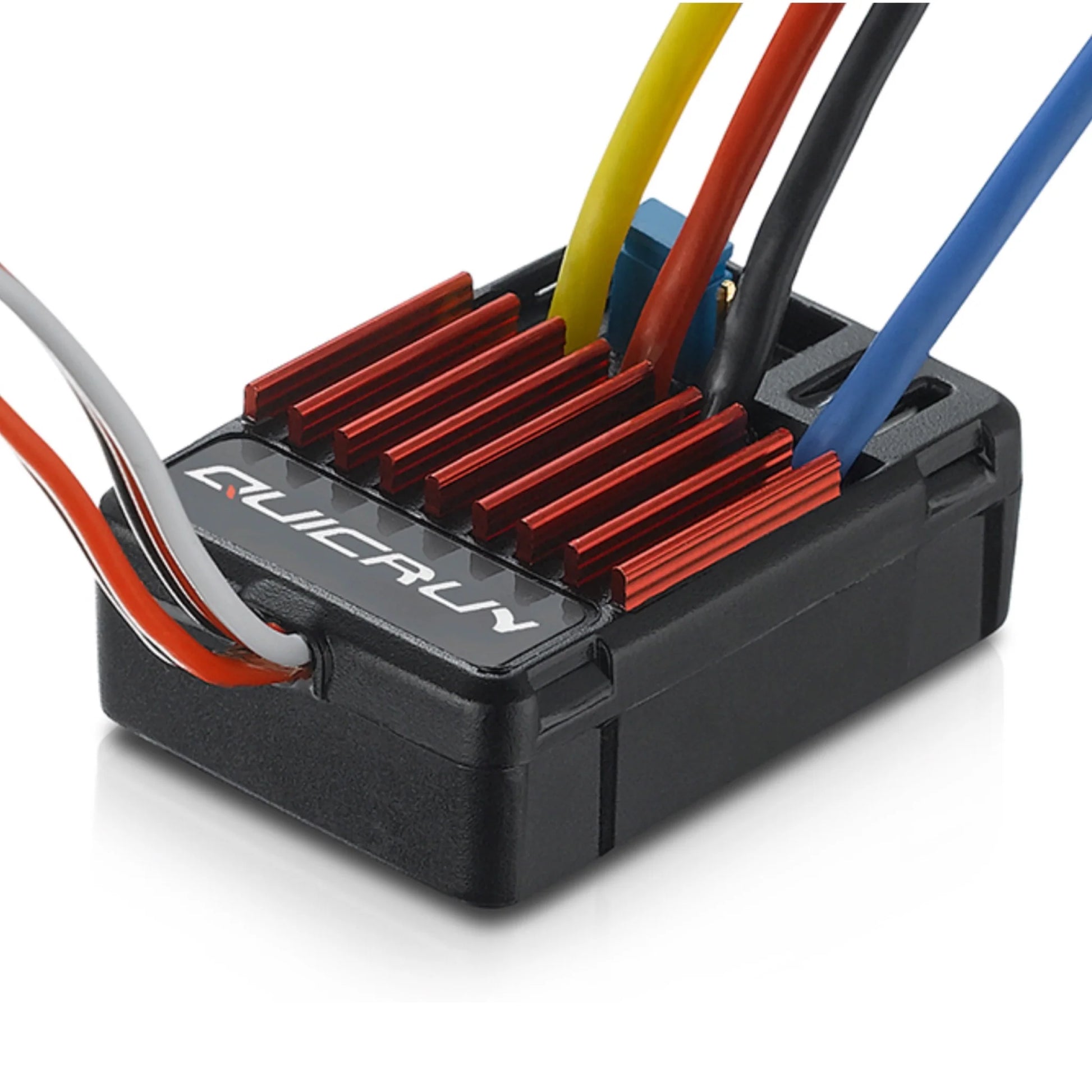

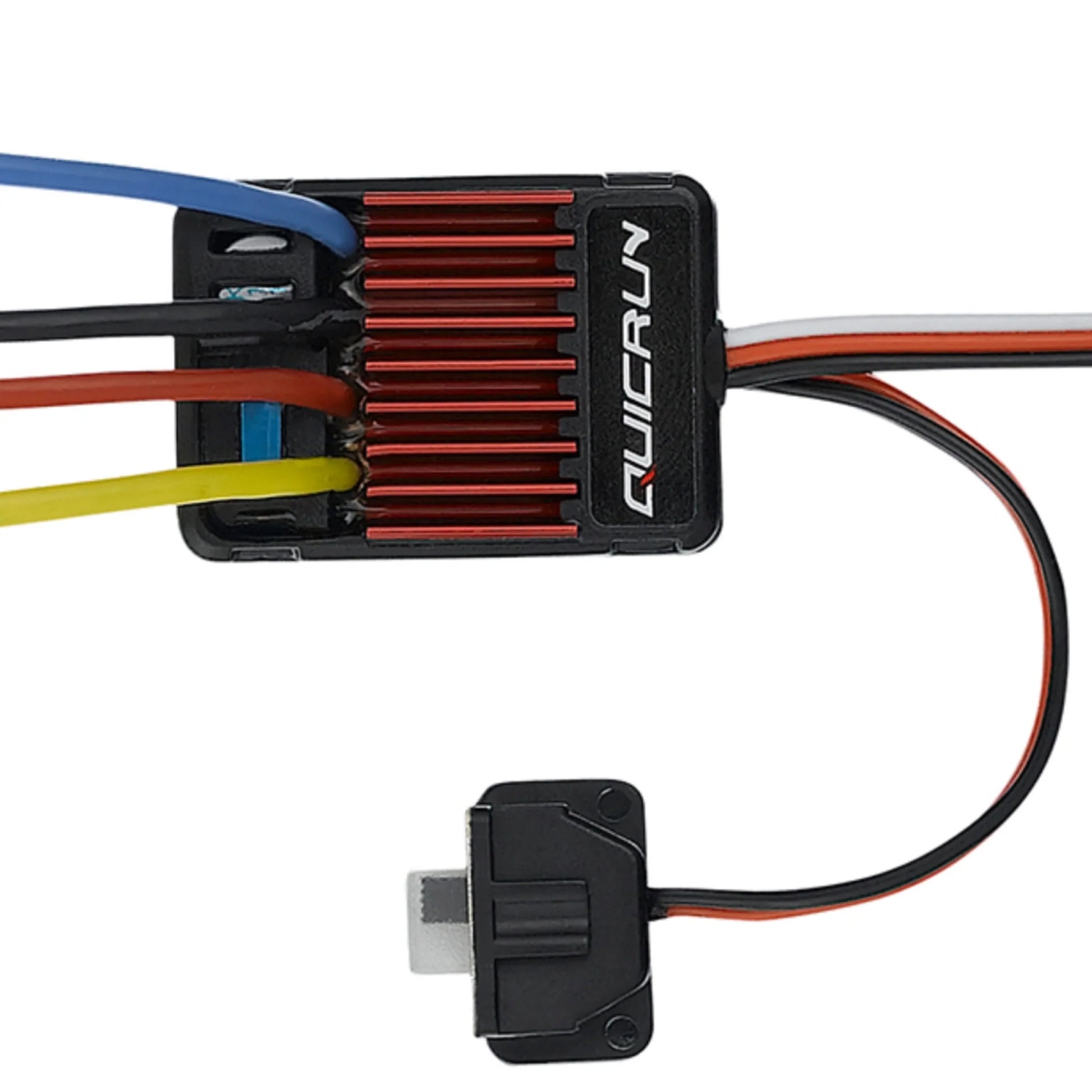

QUICRUN 1625 BRUSHED ESC (2-3S)
QUICRUN 1625 BRUSHED ESC (2-3S)
SKU:30120000
Regular price
$30.00
Regular price
$30.00
Sale price
$30.00
Unit price
per
Backorder
Couldn't load pickup availability
Suitable for 1:16 & 1:18 SPORT
- Waterproof and dustproof, suitable for races in all weather conditions.
- Small size with built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set with jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection.
- Risk Free Manufacturers limited warranty
|
Model / SKU
|
QUICRUN-WP-1625 BRUSHED / 30105025001 |
|
Fwd Cont. Current /Peak Current/ Resistance
|
25A/100A/0.003Ω |
| Rev Cont. Current /Peak Current/ Resistance | 25A/100A/0.003Ω |
| Motor Type Supported | Brushed Motor |
| Car Applicable | 1:16 &1:18 On-road/Off-road/Buggy/Monster |
|
Suitable Battery Brushed Motor Limit |
For 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V |
| Input Connectors | Small-sized TAMIYA Connector |
| Output Connectors | 4.0 Bullet Connectors (Female) |
| BEC Output | 1A/5V (Linear Mode) |
| PWM Frequency | 1KHz |
| Size/ Weight | 34(L)*24(W)*14(H) / 23.5g |
| Running Modes | Forward/Reverse/Brake |
